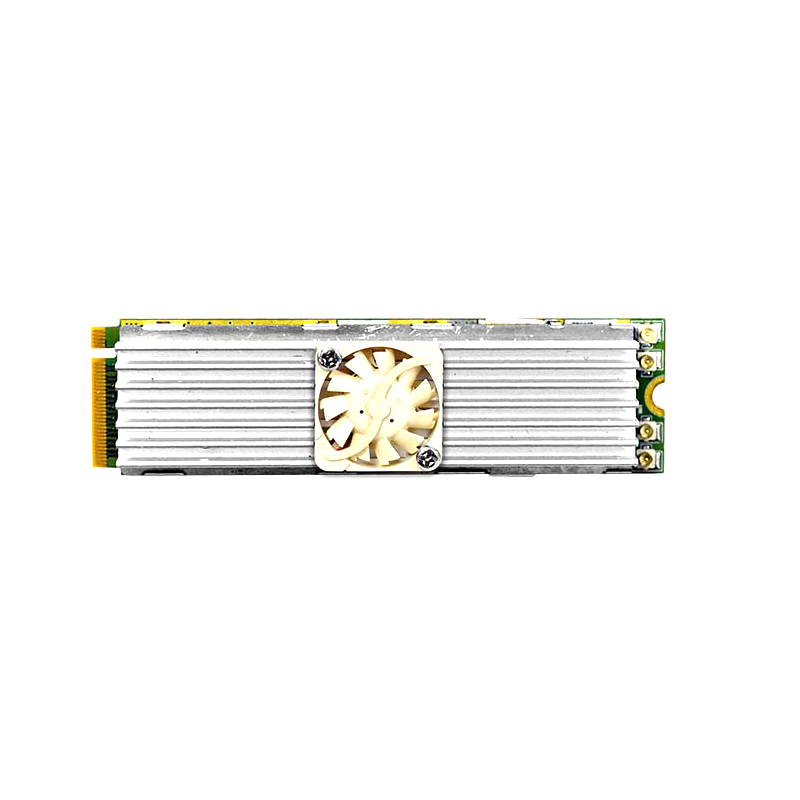

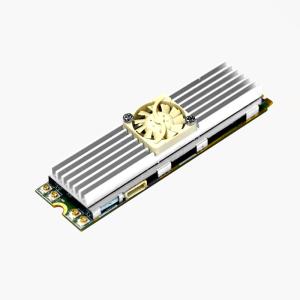

400N4 M2 SDI 1080p60 3G-SDI M2 Capture Card High Efficiency SDK Support

Product Categories

TCHD Digital Video Technology Development (Beijing) Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 400N4 M2 SDI 1080p60 3GSDI M2 Capture Card High Efficiency SDK Support
Brand: TCHD
Price: 500.00 USD

Place of Origin : Beijing, China

Brand Name : TCHD

Packaging Details : Carton box

Supply Ability : 500 Piece/Pieces per Month external hdmi capture device

MOQ : 2 pieces

Price : $500.00 - $575.00/pieces

Channels : 4

Video Compression Format : H.264

SDK : SDK support

Compression mode : Software compression

Operation System Support : Windows,Linux

Nature : 1080P60 live streaming

Input : SDI

Output : HTTP/RTMP/RTSP

Video encoding : H.264

Resolution : 1920x1080P60

Type : M2

Application : Live streaming, webcasting, video conference, game capture

Port : Beijing

Contact Now

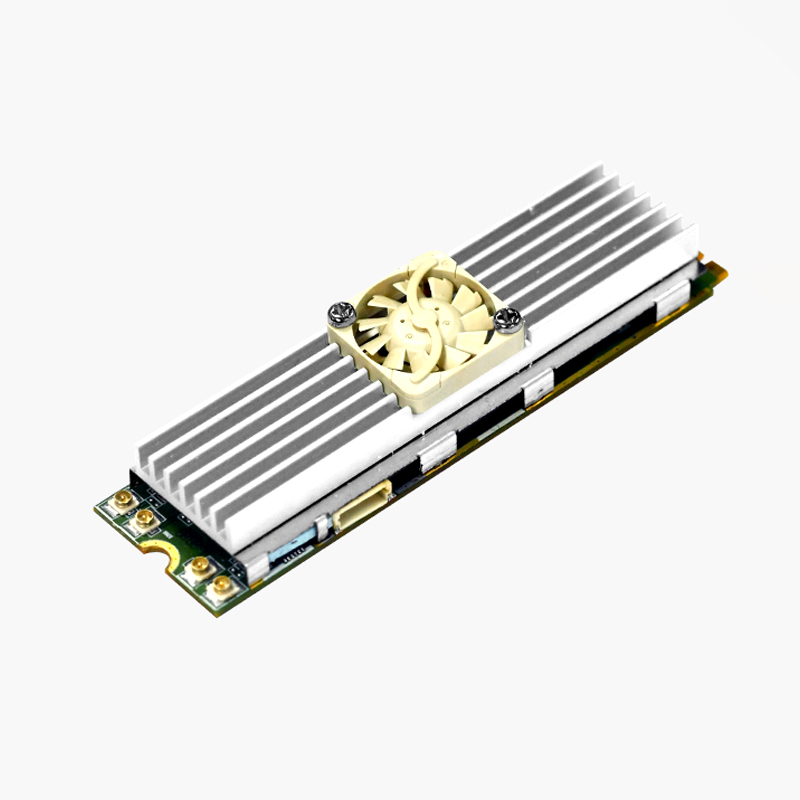

4 channel 1080p60 3G-SDI M.2 capture

Introduction

Model	400N4 M2 SDI
Max Input Resolution	In 1920×1080p@60/50 → Out1920×1080p@60/50
Recording Mode	Software Compression, Real-Time Mode

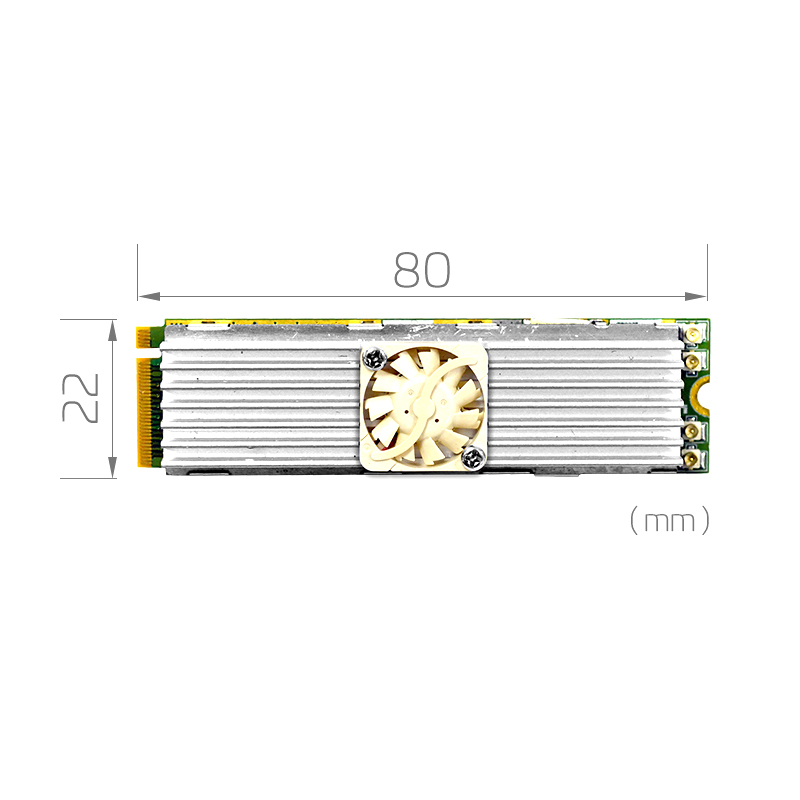

Dimension	22×80 (mm) M.2 Type M
Interface	M.2 (PCIe×4 )
Video input	3G-SDI
Video Raw Data Format	YV12, NV12, YUY2, RGB24, RGB32, P010,
Vdieo Raw Data Resolution	3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps
Recording Video Format	H.264 (Software Compression)
Color Format	Capture/Preview 4:4:4 8bit RGB24 4:4:4 8bit RGB32 4:2:2 8bit YUV2 4:2:0 8bit YV12,NV12 4:2:0 10bit P0110
Video Processing	Video, Audio and VANC Capture Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances
Audio Input	4×Stereo Embedded Audio
Audio Format	Stereo / 16-bit / 32000 ~ 48000Hz
Software Support	Vmix/OBS/ZOOM/Skype/Teams/Discord/Slack/Cisco Webex/GoTo Meeting *DirectShow/V4L2 Compatible Software Supported
System Requirement
OS Support	Windows 7 / Windows 8 / Windows 8.1 / Windows 10/ Windows11 Linux 4.8 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2,NANO,AGX Xavier, Xavier NX

Main Features

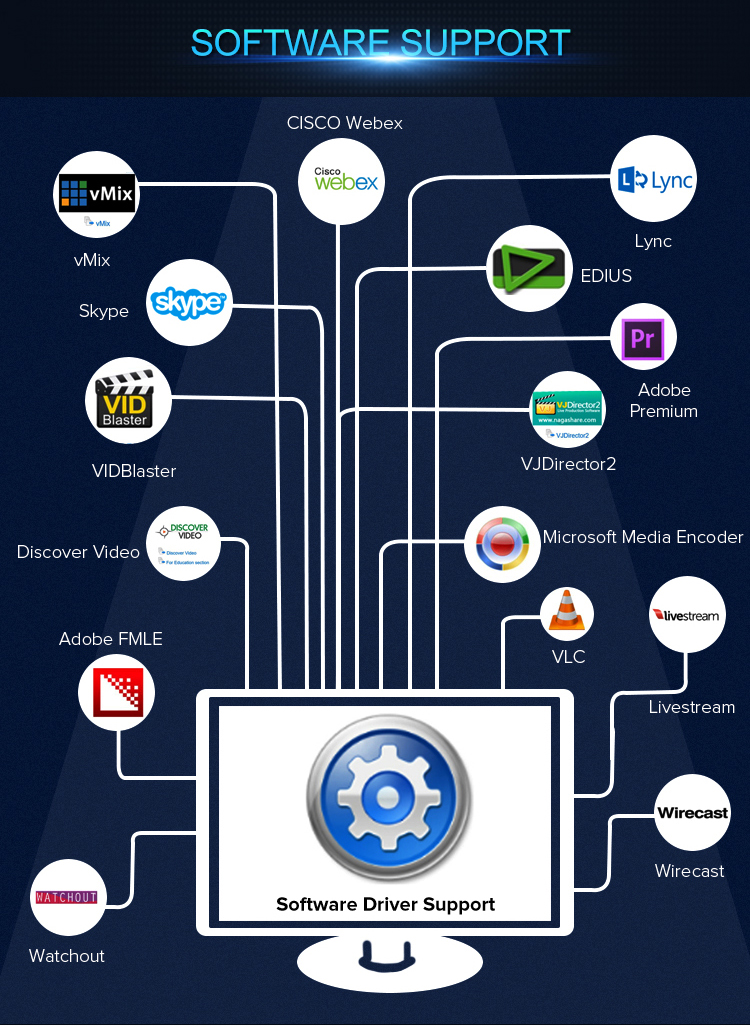

Software Support

400N4 M2 SDI 1080p60 3G-SDI M2 Capture Card High Efficiency SDK Support

Applications

400N4 M2 SDI 1080p60 3G-SDI M2 Capture Card High Efficiency SDK Support

1920x1080p60 M2 Capture Card
